BMW E46 Rear Subframe Repair

Most BMW enthusiasts are familiar with the rear subframe cracking issues found in the E46 chassis. Due to inherent design limitations, many of these vehicles have experienced cracking in the rear floor structure, torn spot welds, and in more severe cases, complete failure of the subframe mounting points.

BMW previously issued a recall and later extended warranty coverage to inspect and repair affected vehicles. However, a significant number of cars did not qualify for coverage due to aftermarket suspension modifications or because they exceeded the program’s time or mileage limits. As these vehicles continue to age, responsibility for addressing or preventing this issue now rests primarily with the owner.

While the extent of damage can vary, it is important to note that all levels of E46 rear subframe failure are repairable. In the most severe cases, replacement of the rear floor section may be the most effective solution. When performing this repair, reinforcing the new floor structure is strongly recommended to ensure long-term durability and prevent recurrence.

Over the years, we have encountered numerous vehicles exhibiting varying degrees of rear floor cracking and structural tearing. To address and prevent this type of damage, several reinforcement kits are available on the market. Recently, we worked with a customer who elected to have the WeldTech Bristol reinforcement kit installed, which is one of the most comprehensive and labor-intensive solutions currently available.

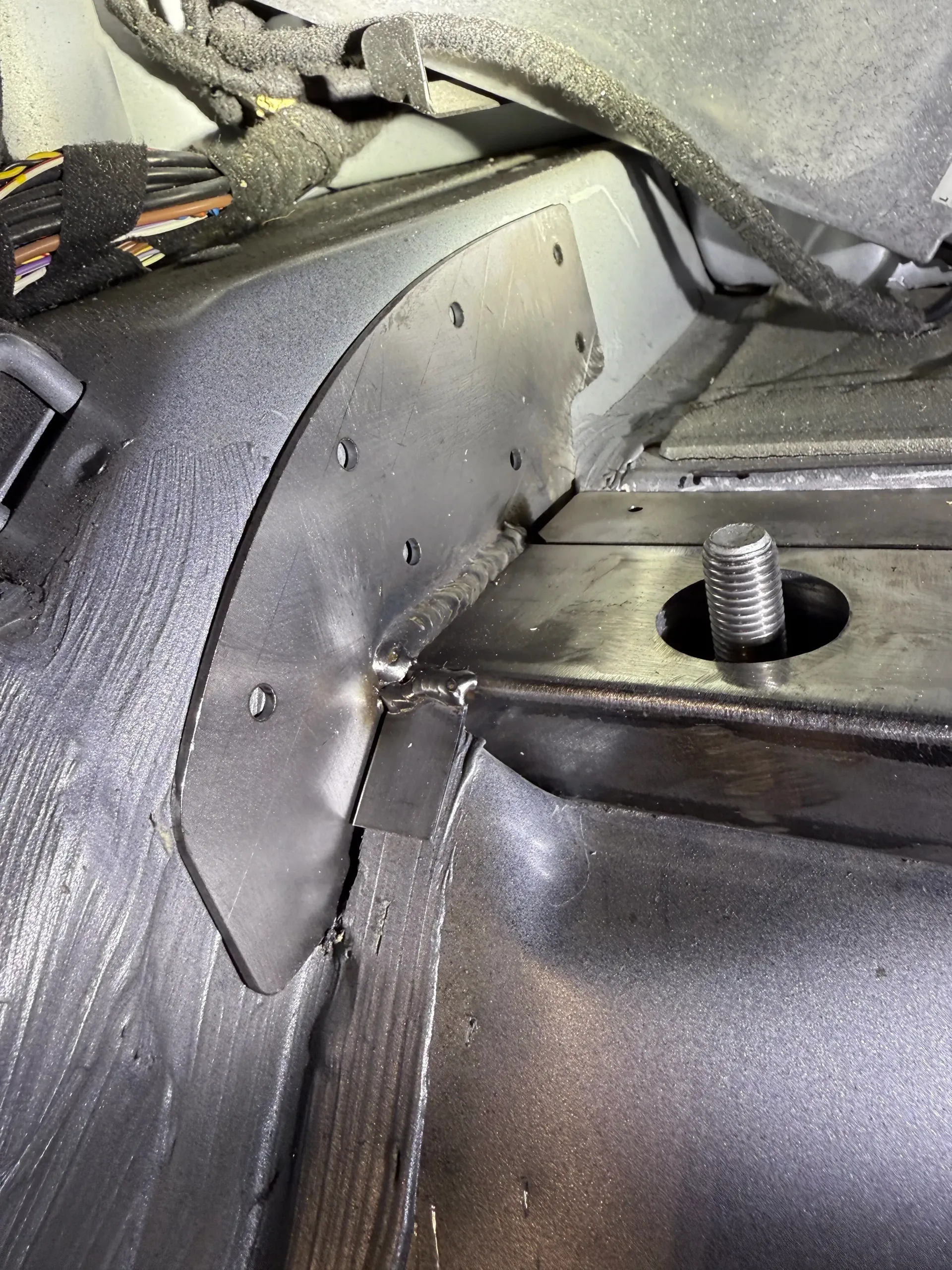

This installation requires extensive cutting, which provides an unparalleled view into the internal structure of the rear floor assembly. In this particular case, the vehicle had already been reinforced with a different weld-in kit approximately six years earlier. Upon disassembly, the findings were both eye-opening and educational, revealing significant damage between the upper and lower layers of the floor structure that would not have been apparent from an external inspection alone.

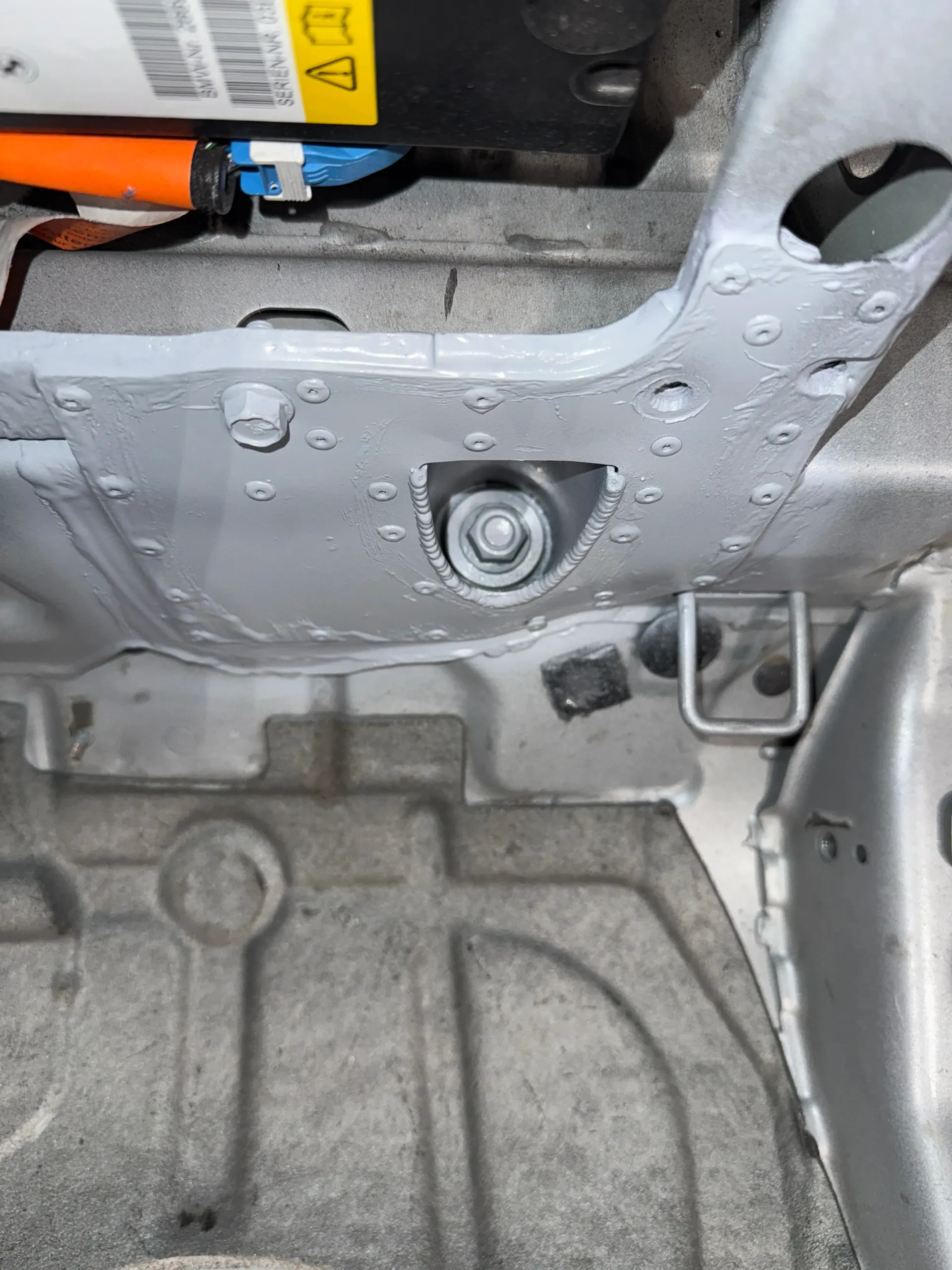

It became clear during the repair process that the previously installed reinforcement kit not only failed to prevent cracking, but may have contributed to additional damage by introducing excessive rigidity in certain areas of the floor. After addressing the affected sections, we proceeded with installation of the WeldTech kit, restoring the structure and returning the vehicle to service in excellent condition.

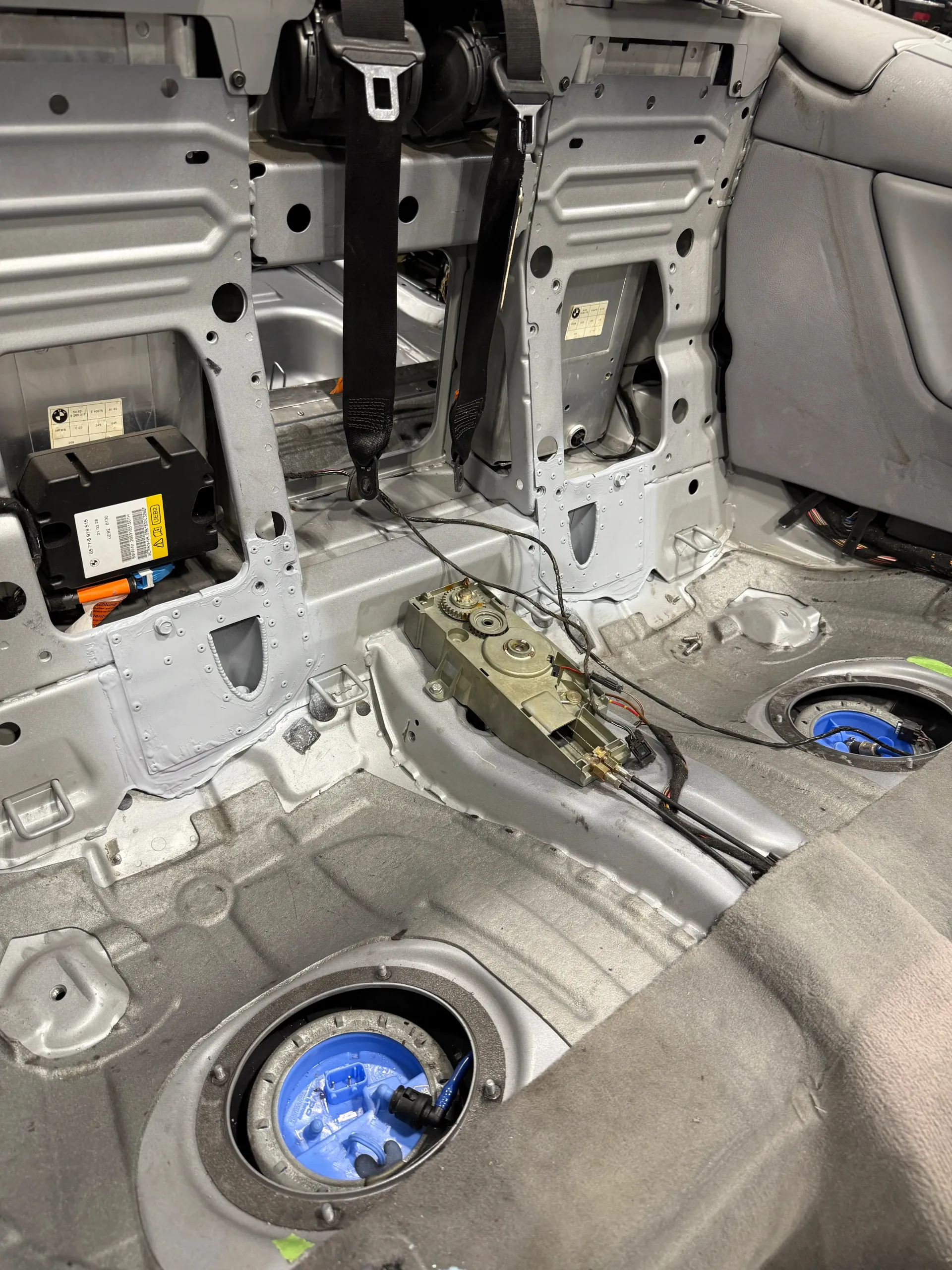

Fast forward to the next E46 convertible that came through our shop requesting rear subframe reinforcement. As part of our ongoing evaluation of reinforcement strategies, and while considering the development of a solution that more effectively distributes the forces responsible for this condition, we were introduced to Vincent Pihlström and his company, Practical Performance R&D.

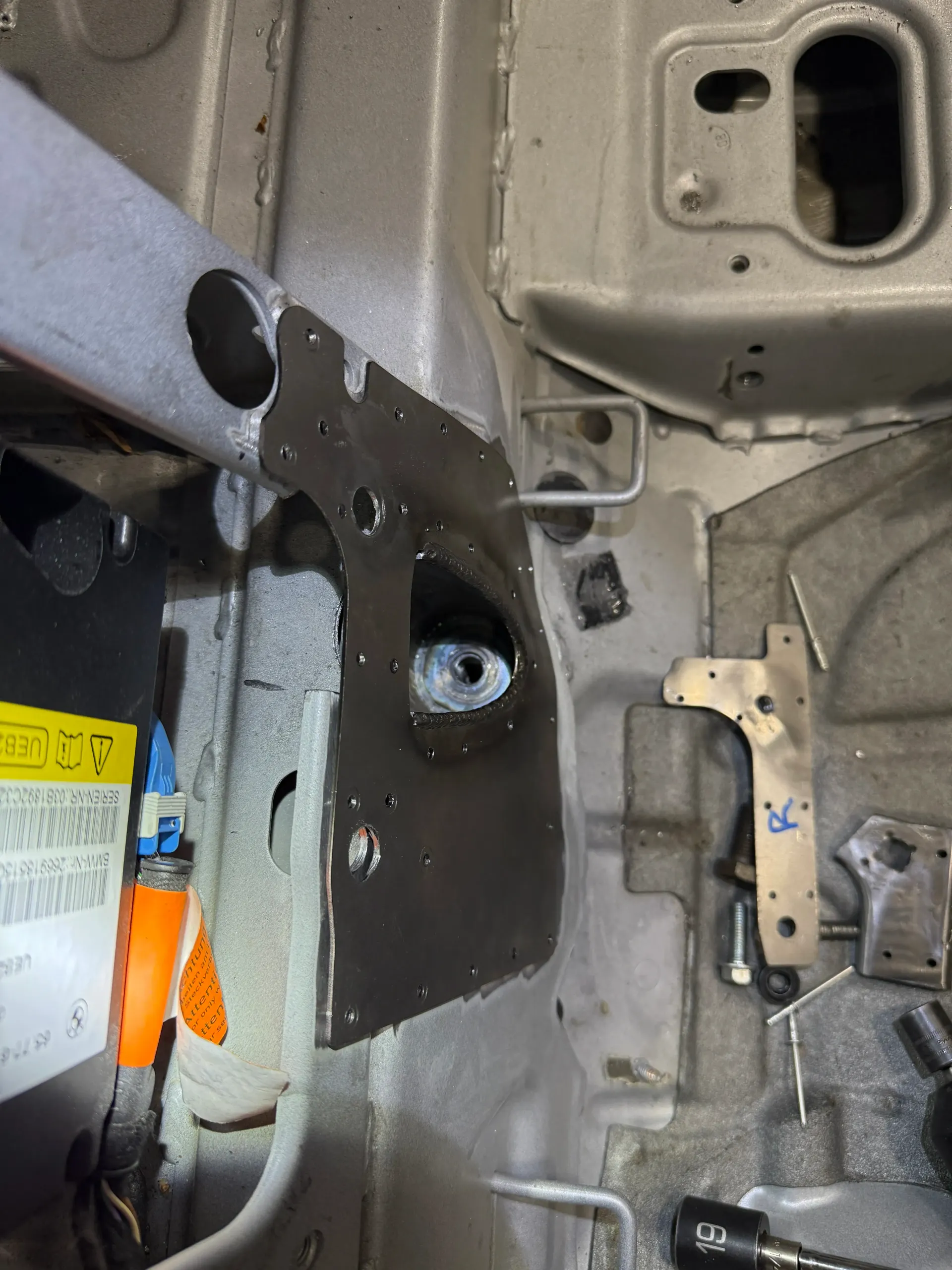

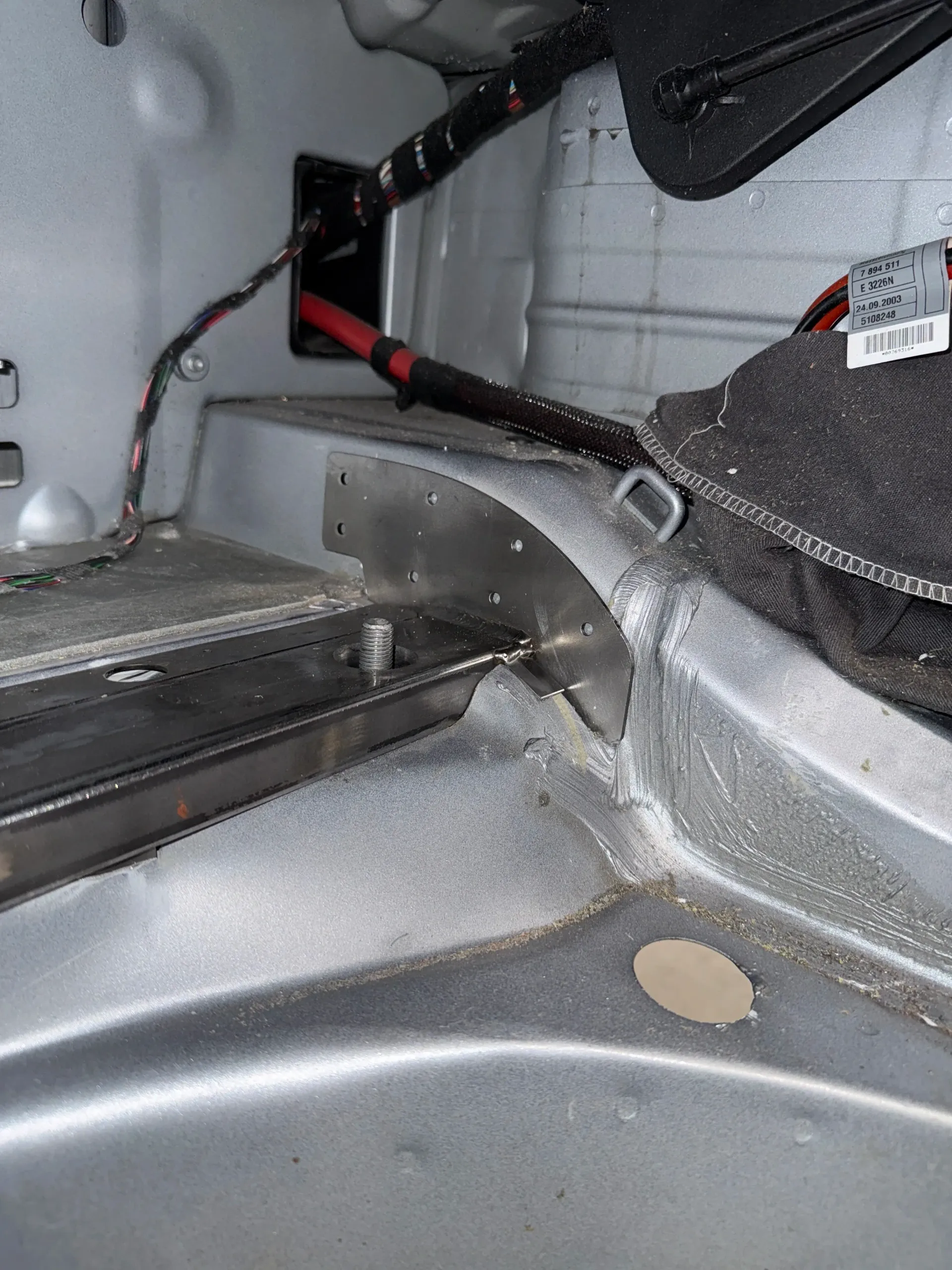

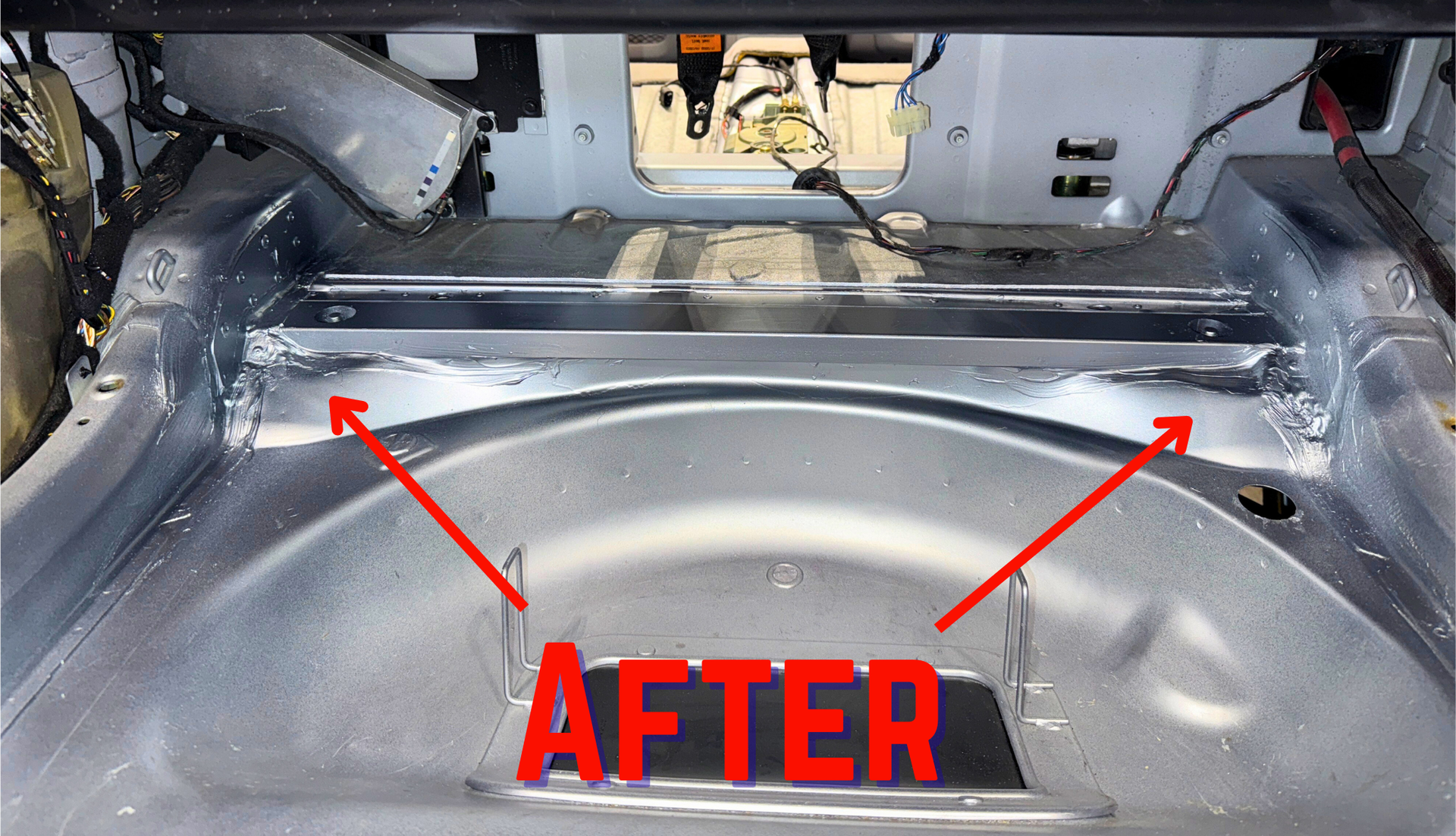

The VinceBar reinforcement system and related components use a well-thought-out design that connects the upper and lower layers of the rear floor structure. This design stabilizes the subframe mounting points without creating excessively rigid areas where stress can concentrate and lead to cracking. By allowing loads to be spread and absorbed more evenly, the system improves overall force distribution and reduces the flex and stress concentrations that commonly contribute to rear floor failure in the E46 chassis.

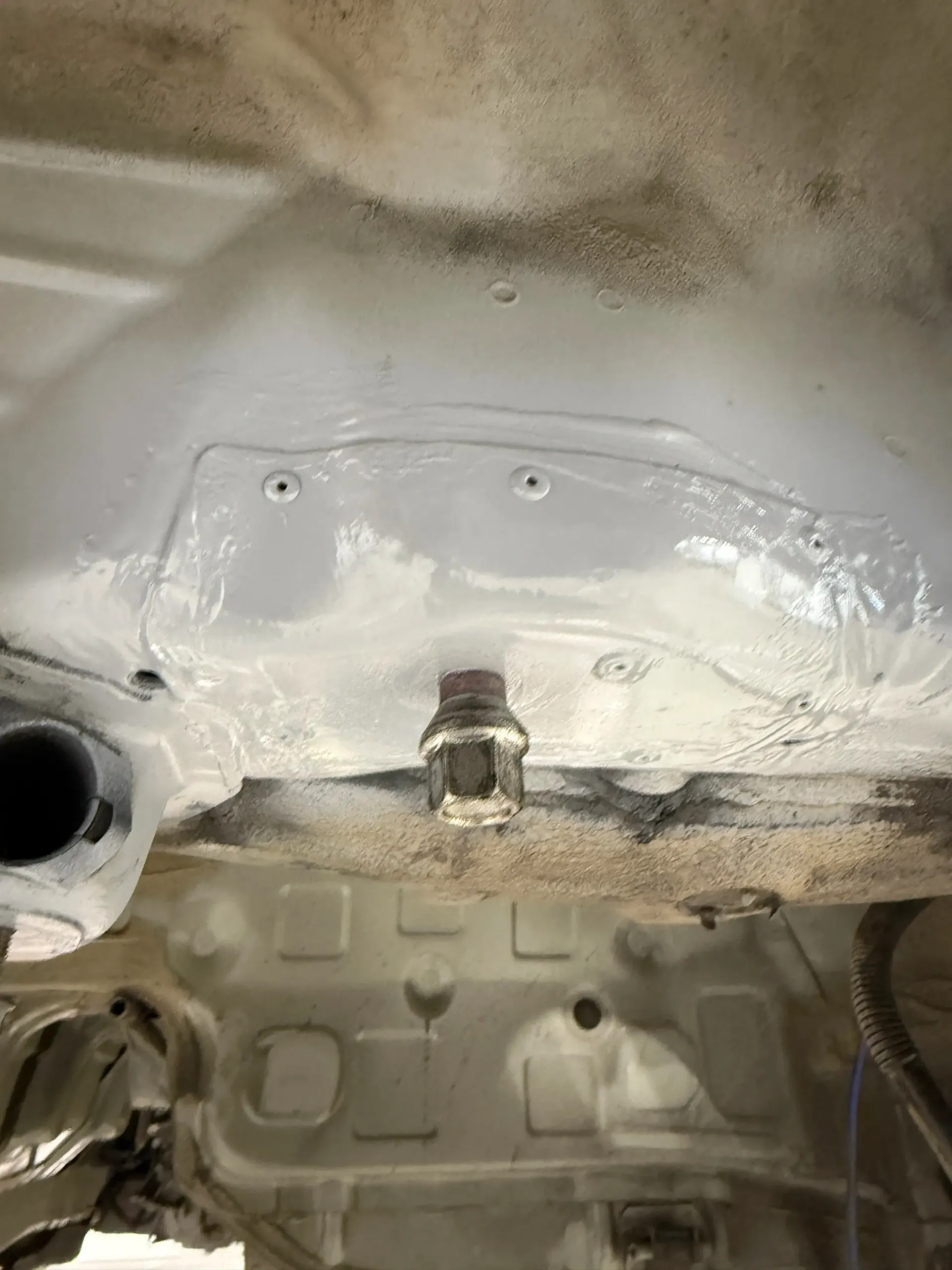

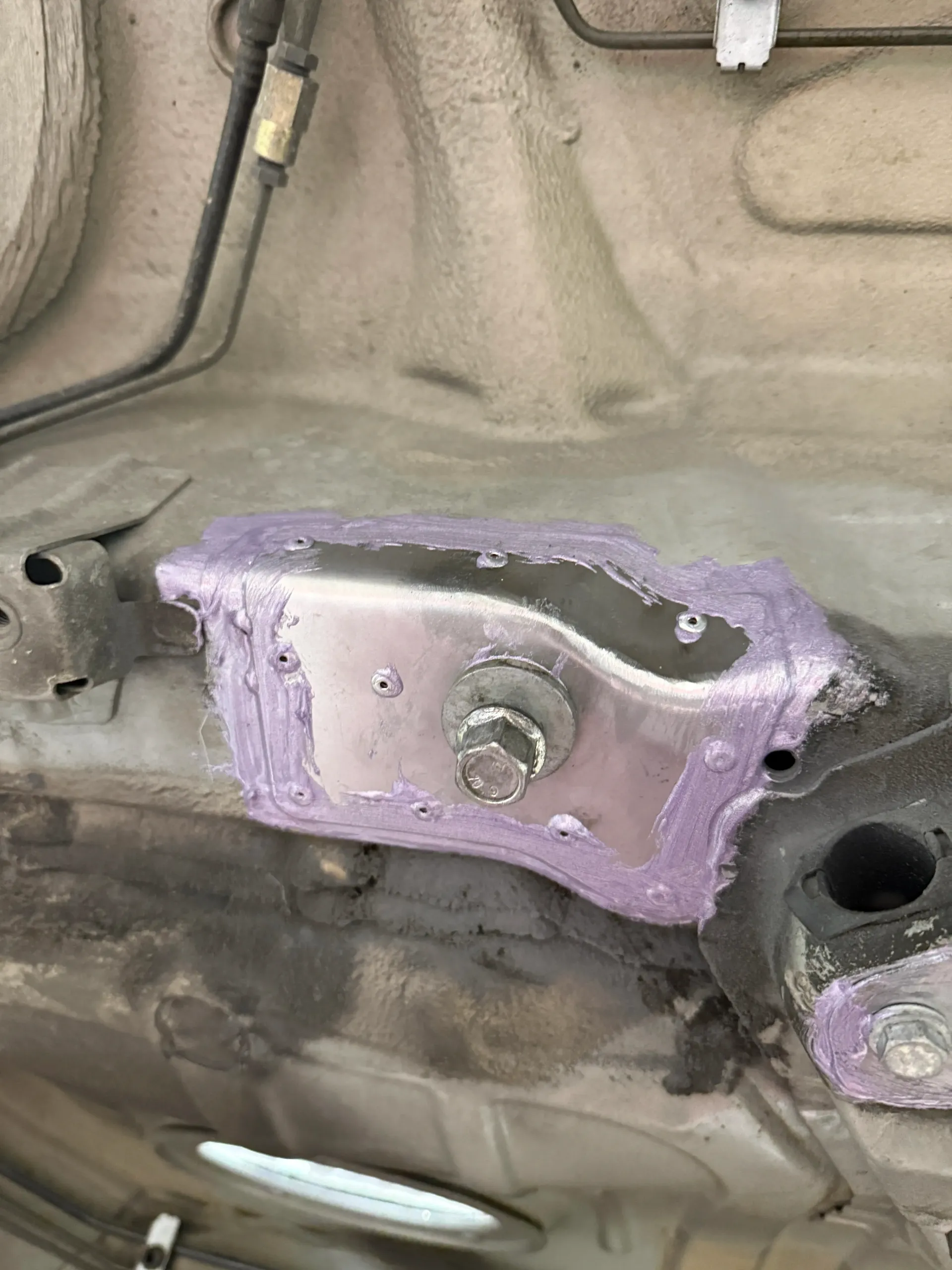

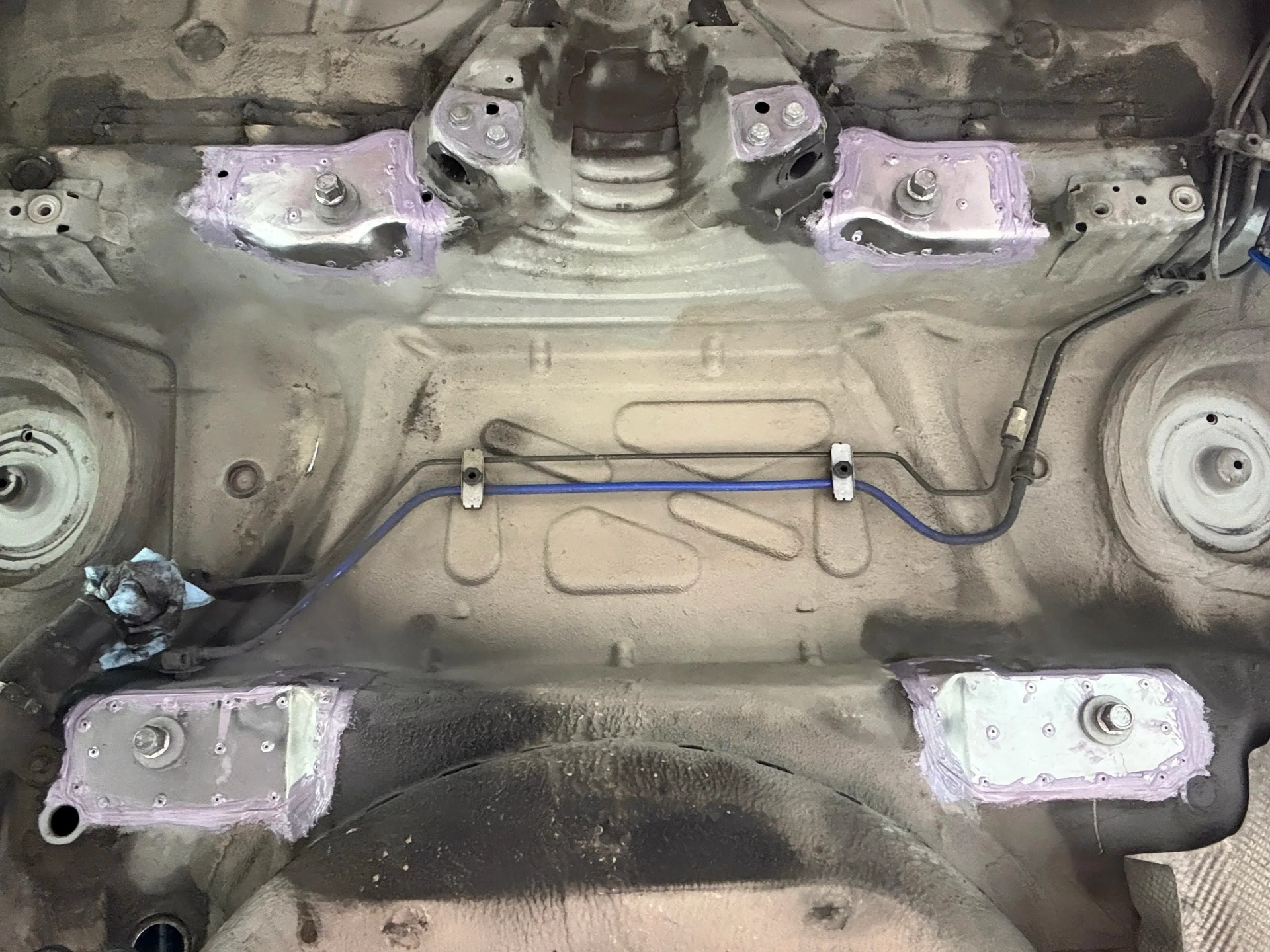

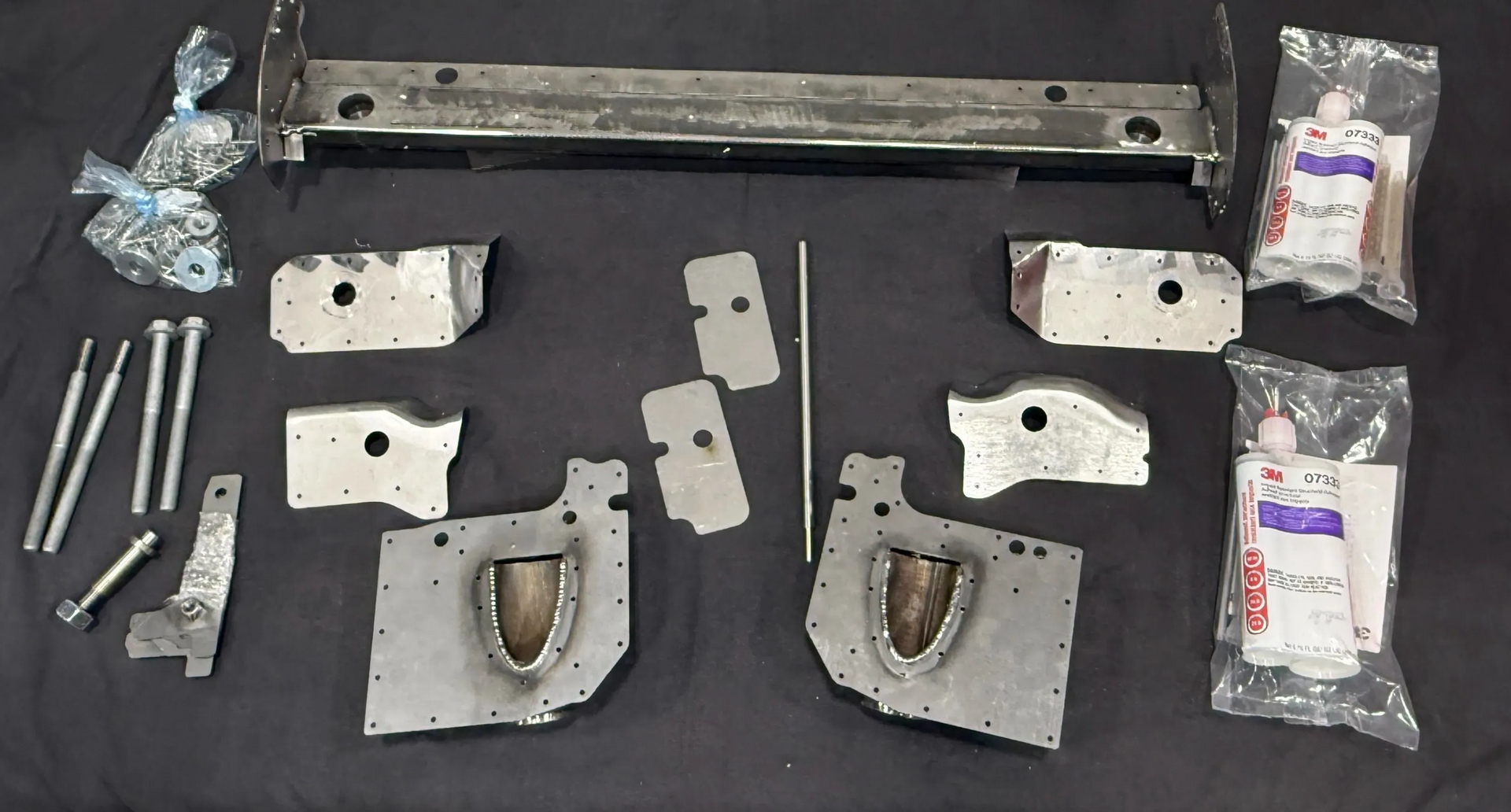

For the VinceBar installation, we selected the epoxy-based VinceBar kit along with the front gusset cup kit and VinceSkinz components. We strongly recommend completing these components together to ensure a comprehensive reinforcement solution. The installation utilizes 3M Impact Resistant Structural Adhesive, which we source locally, and is combined with our established finishing process that includes seam sealer, epoxy primer, e-coat, undercoating, and paint to ensure proper protection, longevity, and corrosion resistance.
